Compact Glass Fume Hood

This fume hood model has an electrogalvanised steel with baked epoxy polyester coating hood that comes with dual glass sides. The main feature of this particular series is the sash material made from polycarbonate, with vertical flip open configuration (comes in 2 pieces).

SKU: MEH C780 Category:

Description

PRODUCT: COMPACT GLASS FUME HOOD – MEH C780

This fume hood model has an electrogalvanised steel with baked epoxy polyester coating hood that comes with dual glass sides. Besides, this unit has a sash material made from polycarbonate, with vertical flip open configuration (comes in 2 pieces).

The standard worktop material is solid cast epoxy resin worktop in black colour. Otherwise, if you want to go with alternative worktop material, you can go with phenolic resin laminates, polypropylene, PVC or stainless steel.

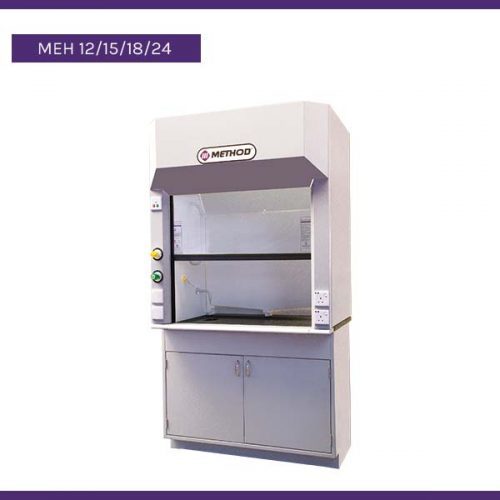

For general purpose fume hood, please check our MEH Series – tested against ASHRAE 110 standard.

Additional information

Type

Compact Glass Fume Hood

Exhaust Outlet Size

6 inches

Number of Exhaust Outlet

1

Hood Construction Material

Electrogalvanised steel with baked epoxy polyester coating c/w dual glass sides

Mobile Support Frame Construction

Hollow steel frame with oven baked epoxy polyester coating

Worktop Material (Standard)

Solid cast epoxy resin worktop (Black)

Worktop Material (Alternative)

Phenolic Resin Laminates/ Polypropylene/ PVC/ Stainless Steel

Sash Material

6mm polycarbonate

Sash Configuration

Vertical Flip Open (2 pieces)

Lighting

Fluorescent Lighting

Electrical Sockets

13 Amps – 2 units

Controller

Standard Switch
