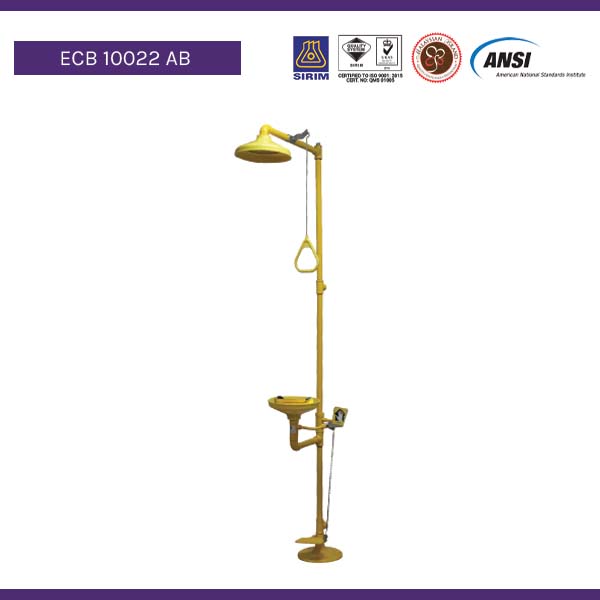

Combination Shower & Eyewash c/w ABS Plastic Bowl & Foot Pedal

The most popular combination of shower and eyewash for industrial areas and laboratories. This floor-mounted combination unit of drench shower and eyewash with ABS plastic bowl comes with a foot pedal. The unit is very effective and highly recommended in accident-prone areas.

Certified to ANSI/ISEA Z358.1-2014 Standard.

ANSI Z358.1-2014: Emergency Eyewash and Shower Standard

SKU: ECB 10022 AB Category:

Description

PRODUCT DETAILS – COMBINATION SHOWER & EYEWASH WITH ABS PLASTIC BOWL & FOOT PEDAL

Shower & Eyewash Bowl – 280mm (11″) bowl using chemical resistant ABS in bright yellow colour.

Eyewash Assembly – Stainless steel with ABS spray heads assembly with twin, soft-flow emergency eyewash heads and instant flip-open protective dust cover. Also, the built-in automatic pressure compensating valve assures safe steady flow under varying water supply conditions. In addition, the spray heads also include a filter to protect users against particles from the water flow which may be damaging to the eyes and face.

Control Valve – The eyewash assembly is using a 316 stainless steel 1/2″ IPS valve that stays open until manually closed. Other than that, this unit also has a large, highly visible stainless steel push-plate & foot pedal that operates the control valve. Meanwhile, for the shower assembly, this combination unit is using a 316 stainless steel 1″ ball valve with the stainless steel pull rod.

Pipe and Fitting – 1″ IPS stainless steel pipe epoxy powder coated in bright yellow colour.

Pedestal –  250mm (10″) aluminium pedestal with 3 mounting holes for 9mm bolts. The pedestal is epoxy powder coated in bright yellow colour.

Waste – 1″ IPS tailpiece

Water Supply – 1″ IPS

Signage – Drench Shower and Eyewash

Option – For Combination Shower & Eyewash with Stainless Steel Bowl & Foot Pedal,  please check model ECB 10022SS.



Certified to ANSI/ISEA Z358.1-2014 Standard.

Additional information

Model

ECB 10022 AB

Bowl Size

280 mm

Bowl Material

ABS Plastic Bowl

Nominal Pipe Size

1 inch

Inlet Size

0.5 inch

Shower Flow Rate

At least 90 l/m

Eyewash Flow Rate

At least 15 l/m

Stanchion

Stainless Steel 304

Connecting Fittings

Stainless Steel 304

Control Valve

Stainless Steel 316

Signage

Drench Shower and Eyewash

Certification

ANSI Z358.1 & AS 4775
