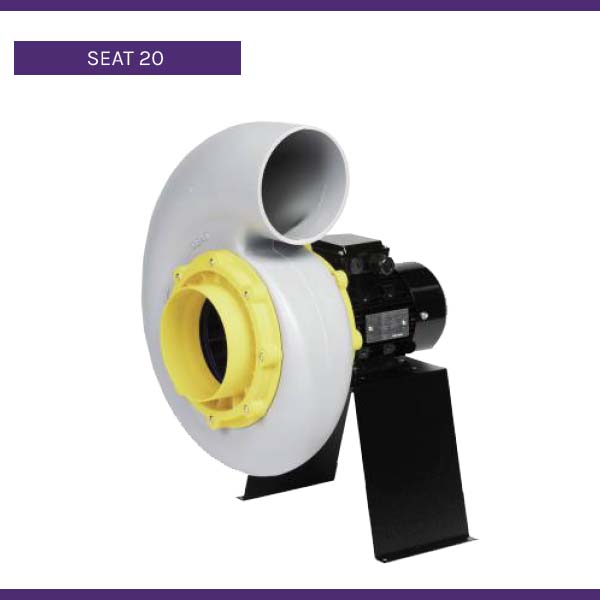

Inlet PP Centrifugal Fan with Motor (SEAT 20)

Technology from France,  this 6″ polypropylene centrifugal exhaust fan designed to extract highly corrosive gases with a maximum airflow of 1500mch and the inlet and outlet dimension of 160mm. Available in ATEX and Explosion Proof version, contact us to learn more.



SKU: SEAT 20 Category:

Description

PRODUCT: INLET PP CENTRIFUGAL FAN WITH  MOTOR (MODEL SEAT 20)

Made of injection-moulded polypropylene, this unit is effective for extracting fumes from laboratories, extraction hoods, chemical, pharmaceutical and galvanising works. The centrifugal fans are used especially in situations that require resistance to chemical agents, silent operation and energy saving.

The top features of the SEAT series are:

    • Polypropylene is resistant to ultra-violet rays, is tough and is highly resistant to chemical agents, especially organic solvents.
    • The injection-moulded polypropylene fans are statically and dynamically balanced in order to ensure silent and energy-saving operation.
    • These SEAT series fans can be adjusted to 8 positions through 360°.
    • Airflow: 300-1500 mch
    • Total pressure: 50-1400 Pa
    • These SEAT units come in few variations: single-phase, three-phase, ATEX or EEX.

Additional information

Model

SEAT 20

Diameter

160 mm
6 inch

Horse Power

0.35HP

Voltage

415 V

Speed

1450 RPM

Casing

Polypropylene

Impeller

Polypropylene

Documents

SEAT 20 Specifications
